Description

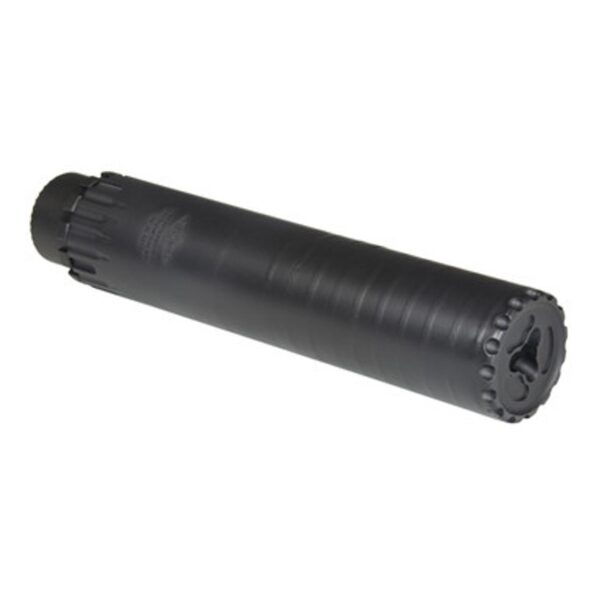

YHM’s .30 caliber sound suppressor the Resonator® R2 was created to provide the shooting enthusiast with a quiet lightweight and cost effective suppressor. The notched rim and tri-port muzzle on the end cap make it stand out among the crowd. Capable of being used on multiple calibers and host weapons the Resonator® R2 can be used on rifle calibers ranging from .17 HMR through 300 RUM making it a great choice for all shooters. The Resonator® R2 uses a tubeless design which consists of heat treated 17-4 stainless steel and a Cobalt 6 blast baffle which allows the suppressor to be full-auto rated and designed for rigorous use.
The Resonator® ships with the Phantom® Q.D. Adapter (1) YHM-2007 (1) YHM-2146 and a YHM-4302-MB-24a.

• 20" Remington 700 shooting .308 Winchester 147 grain measured 135Db
• 16" 6.8mm AR-15 shooting 110 grain measured 132.5Db
• 14.5" 5.56mm AR-15 shooting 55 grain measured 132Db

• Caliber: .30
• Weight: 13 oz./16 oz. w/Q.D. adapter
• Length: 6.95”/7.825” w/Q.D. adapter – 5/8-24” threads
• Diameter: 1.5625”
• Construction: 17-4 Ph SS/Cobalt 6 Blast Baffle
• Mount: Phantom Q.D. HUB adapter
• Decibel Rating: 135 dB
• Minimum Barrel Lengths:
  7.62×51 / .308 Winchester: 10.5”
  5.56 NATO 6.8SPC 7.62×39: 10”
  .300 Win Mag / 300 RUM: 20”
  300 Blackout: 7.5”
• Full Auto Rated
